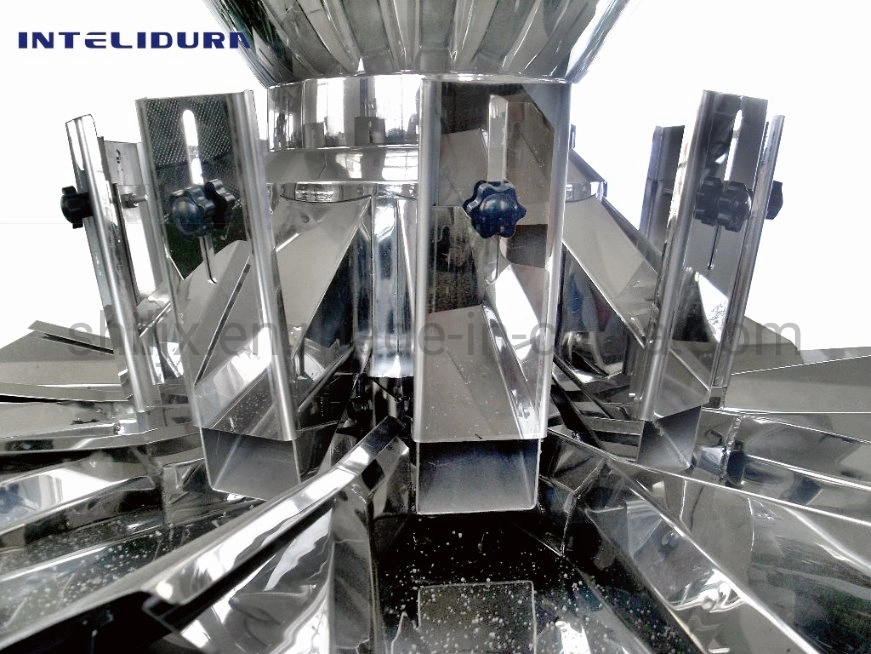

Advance Multi-head weigher Plus+
Application
It is widely used for weighing candy, chocolates, potato chips, plantain chips, seeds, nuts, jelly, Animal feed, petfood, Potato Chips, beans, sticky products, frozen products etc.
Features
- Multi language touch screen interface.
- All stainless steel/aluminum made.
- Auto-pause when there is a material shortage.
- High speed mode up to 160 weights/Min, proportional mixing weighing technology
- Help menu to understand each function and parameters.
- High integrated modular design, technology CAN bus.
- Modbus industry communicated protocol.
Configuration/Advantages
- NMB or HBM ultra precision Load cells.
- All machinery units are Inter-changeable, easy maintenance and reparation.
- Resistant for Water spraying and humidity.
- Auto vibration magnitude adjusting to adapt different products or weights.
- Sequential hopper discharging to avoid congestions or blockage.
- Overweight signal and Auto-rejection system.
- Dysfunctional weighing head can be suspended to continue production.
- Corrugated hopper, SUS 316 optional.
Specification
| Model | MHW-B24 | MHW-B32 |
| Application | Mix weighing of 2/3/4 products | Mix weighing of 2/3/4 products |
| Weighing Range(g) | 5-240g | 5-300g |
| Precision(%) | 0.5% | 0.5% |
| Max. Speed(p/m) | 55 mezclado | 55 mezclado |
| Hopper Size(L) | 0.5L | 0.5L |
| Touch Screen | 10'' | 10'' |
| Drive type | Step Motor | Step Motor |
| Power Supply | 220V/1PH/50/60HZ/10A | 220V/1PH/50/60HZ/15A |
| Size Packaging(mm) | 1800x1250X1100mm | 2100x1480x1130mm |
| Weight(kg) | 440kg | 600kg |
