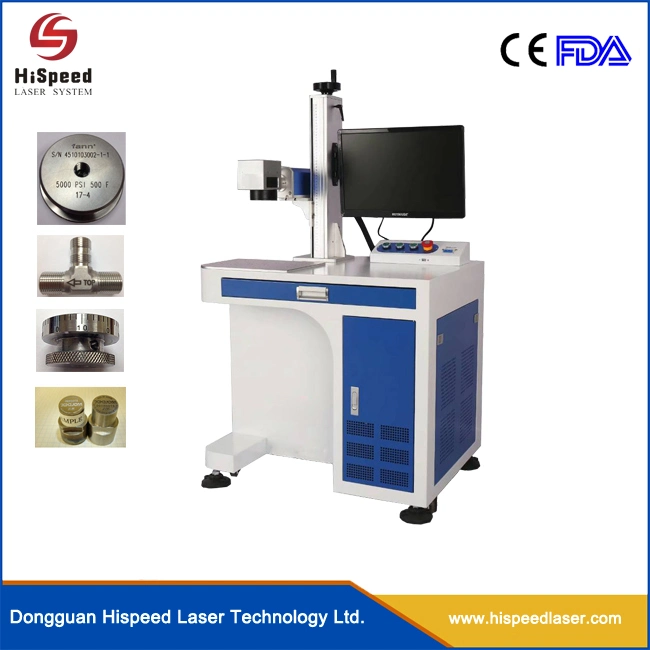

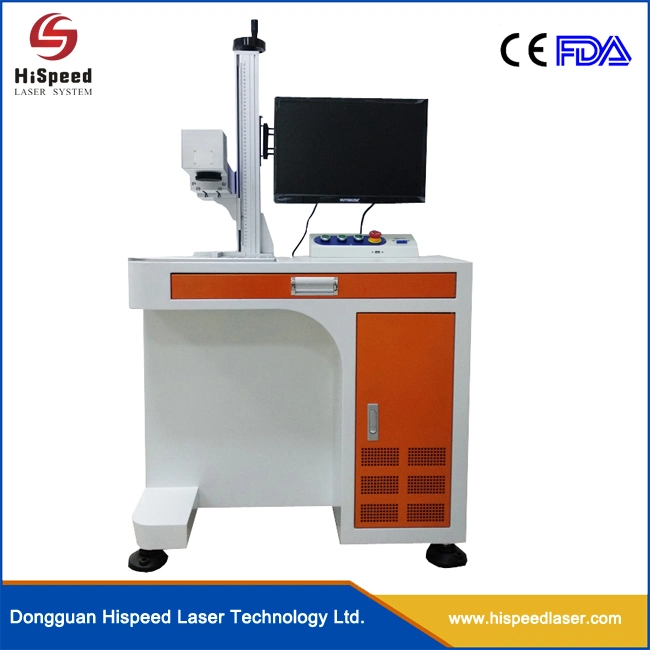

High Quality Desktop Fiber Laser Marking Engraving Machine Laser Equipment for Metal
>>>>>Equipment Description<<<<<<
HiSpeed Fiber Laser Marking Machine adopts advanced digital high speed scan galvanometer and module design that separate laser generator and lifter, which is not only small volume, quick speed, but easily marks on big objects surface. Fiber Laser Marking Machine 20W 1000W Widely used in food and beverage,leather, packaging, cosmetics, electronics and other industries, low consumption, non-toxic, no pollution.
>>>>>>Machine Features<<<<<<
>>>>>>Machine Details Show<<<<<<
>>>>>>Technical Parameters<<<<<<
Applicable Materials:
Get Contact with us Now!
>>>>>Equipment Description<<<<<<
HiSpeed Fiber Laser Marking Machine adopts advanced digital high speed scan galvanometer and module design that separate laser generator and lifter, which is not only small volume, quick speed, but easily marks on big objects surface. Fiber Laser Marking Machine 20W 1000W Widely used in food and beverage,leather, packaging, cosmetics, electronics and other industries, low consumption, non-toxic, no pollution.
>>>>>>Machine Features<<<<<<
- Minimal Maintenance
- Diodes have a lifetime of more than 70,000hrs
- High quality permanent marking
- Environment friendly and safe Machinery
- Works both on Metal and Non-metal
>>>>>>Machine Details Show<<<<<<
>>>>>>Technical Parameters<<<<<<
| Model | YLP-20J | YLP-30J |
| Power | 20W | 30W |
| Wavelength | 1064nm | 1064nm |
| Beam Quality | M2<1.3 | M2<1.3 |
| Output Power | 10%-100%(continuously to be adjusted) | 10%-100%(continuously to be adjusted) |
| Output Frequency | 20KHz-100KHz(continuously to be adjusted) | 20KHz-100KHz(continuously to be adjusted) |
| Power Stability(8h) | <±1%rms | <±1%rms |
| Focus Spot Diameter | <0.01mm | <0.01mm |
| Engraving Range | ≤400*400mm(customized) | ≤400*400mm(customized) |
| Engraving Depth | 1.2mm | 1.2mm |
| Engraving Speed | 800 standard characters/second | 800 standard characters/second |
| Minimum Line Width | 0.012mm | 0.012mm |
| Minimum Character | 0.1mm | 0.1mm |
| Repeated Accuracy | ±0.003mm | ±0.003mm |
| System Operation | Windows 7/10 | Windows 7/10 |
| Cooling Mode | Air Cooling | Air Cooling |
| Environment Temperature | 10ºC~35ºC | 10ºC~35ºC |
| Environment Humidity | 20%-80% | 20%-80% |
| Power Requirement | 220V/Singlephase/50Hz/<400W | 220V/Single phase/50Hz/<400W |
| Life of Laser Module | 70000~100000Hrs | 70000~100000Hrs |
| Host Size | 800mmx650mmx1435mm | 800mmx650mmx1435mm |
Applicable Materials:
| Electronic Components : | Resistance, capacitance, chips, printed circuit boards, computer keyboard. |
| Apparatus And Meter: | Panel signs, precision equipment ,etc., |
| Instrument: | Panel signs nameplates, precision equipment ,etc., |
| Hardware Tools : | Knives, tools, measuring tool, cutting tool, etc., |
| Automobile Parts : | Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc., |
| Mechanical Parts : | Bearings, gears, standard parts, motors, etc., |
| Daily Necessities : | Handicrafts, zipper, key holder, sanitary ware, etc., |
| Jewelry Rings: | Jewelry, gold, silver,etc. |
| Food, drinking packing: | Plastic packings,etc. |
Get Contact with us Now!
Please advise us following inforamtion to recommend you most suitable machine:
1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand
