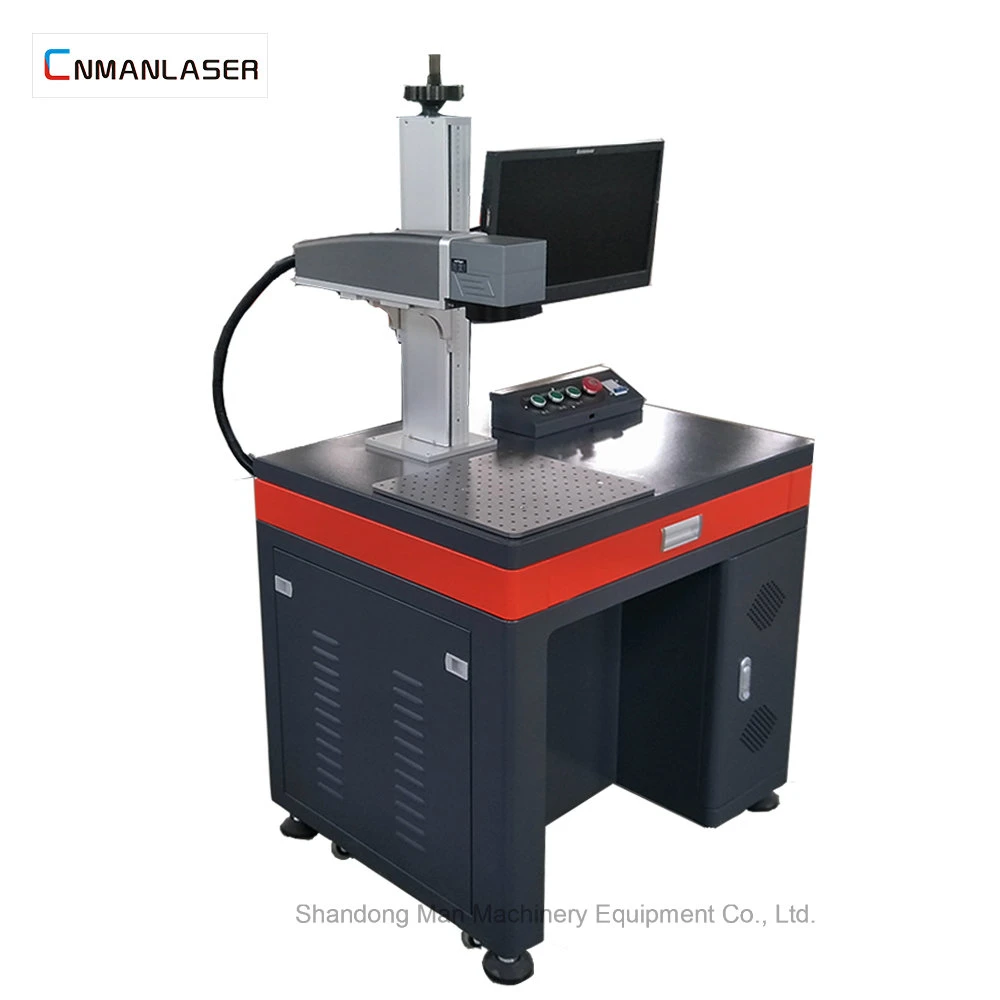

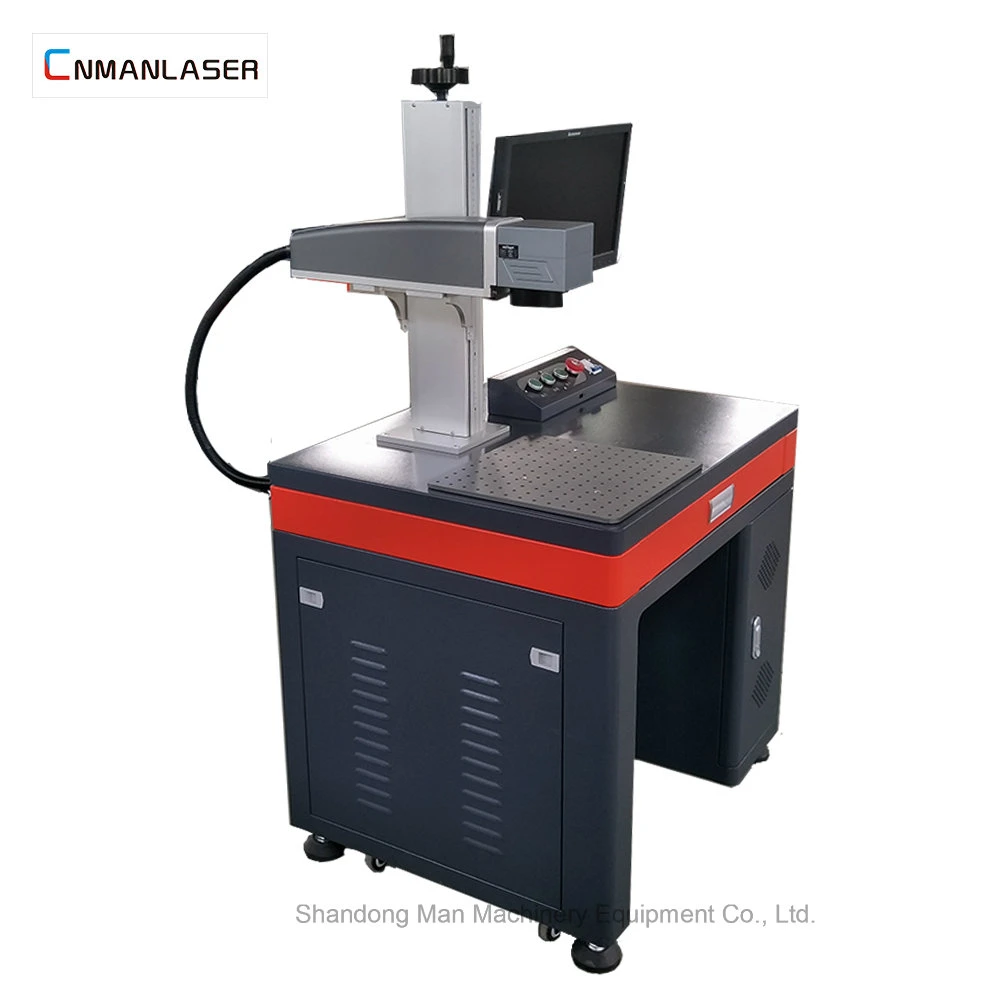

Stainless Steel Color Marking Mopa Deep Laser Marking Machine
MAN Laser's marking machine is manufactured from a modular aluminum structural framing system.
The high-strength aluminum profiles provide the stability of an optical instrument with the rigidity and durability of a machine tool.
The YLP series Fiber Laser Marking Machine adopts superior quality fiber laser and high precison digital scan head to enable stable output and high
quality laser mode. Fiber laser marking machine can meet the demand of mass production with fast marking speed,good marking effect and high
efficiency.
TECHNICAL PARAMETER :
| Product name | Fiber laser marking machine |
| Power | 10w/ 20w/ 30w/ 50w (optional) |
| Laser source | MAX, RAYCUS, IPG ( optional) |
| Working area | 150*150mm, 250*250mm, 300*300mm (optional) |
| Laser wave length | 1064nm |
| Marking depth | ≤1.2mm |
| Marking Speed | 800 standard characters/second |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Repeated Perecision | ±0.003mm |
| Life-span of fiber laser module | 100 000 hours |
| Beam Quality | M2 <1.5 |
| Focus Spot Diameter | <0.01mm |
| Output Power of Laser | 10%~100% continuously to be adjusted |
| System Operation Environment | Windows XP / W7--32/64bits / W8--32/64bits |
| Cooling mode | Air-cooling-Built-in |
| Temperature of Operation Environment | 15ºC~35ºC |
| Power input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
| Power Requirement | <400W |
| Communication Interface | USB |
| Optional device | Rotary device, Moving table, other customized Automation |
DETAILS IMAGES :
FEATURE :Name | Remarks |
Optical laser | Long service life, high reliability, fine beam quality |
Galvo mirror(Laser head) | Fine marking, more quick and high reliability |
F-θ lens | High quality optical device(you can choose |
Marking software | Powerful, simple and convenient operation, Auto-cad, Coreldraw, Photoshop software compatible format |
Control computer | Industrial Computer |
Control cabinet | Optical fiber special cabinet, all the mold production, high seal |
1.Easy operation software, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD.
2.Machine can mark Logo, Text, Photo, Vin code, Number, Serial number,Bar code, Expiry date, Two-dimensional code.
3.Stabilized laser source. 100000 hours. 2 years warranty
4.Using without consumable spare parts, Less maintenance, 24 hours for continuous working.
SAMPLE SHOW :
We offer Fiber Laser Marking Machine with following applications:
l Laser marking of metal & non-metal material and products:
Stainless steel, gold, silver, copper, aluminium alloy, hardware, tools, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper .....
l Hall marking on Gold
l Automotive & Engineering Industries
l Electronic industry: Capacitor, inductor, PCB, IC, connector, control panel and other instruments
l Others: Cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making
We also provides laser sources and spare parts to the laser machine manufacturers in China and surrounding countries.
Materials:
2.Machine can mark Logo, Text, Photo, Vin code, Number, Serial number,Bar code, Expiry date, Two-dimensional code.
3.Stabilized laser source. 100000 hours. 2 years warranty
4.Using without consumable spare parts, Less maintenance, 24 hours for continuous working.
SAMPLE SHOW :
We offer Fiber Laser Marking Machine with following applications:
l Laser marking of metal & non-metal material and products:
Stainless steel, gold, silver, copper, aluminium alloy, hardware, tools, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper .....
l Hall marking on Gold
l Automotive & Engineering Industries
l Electronic industry: Capacitor, inductor, PCB, IC, connector, control panel and other instruments
l Others: Cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making
We also provides laser sources and spare parts to the laser machine manufacturers in China and surrounding countries.
Materials:
| Stainless Steel | Steel | Aluminum, Carbide |
| Nickel | Titanium | Cast Iron |
| Chrome | Painted Metal Alloys | Multi-Coated Metals |
| Plastics/Rubber | Backlit Buttons | Polycarbonate |
| PVC | Composites | Many more materials |
PACKAGING & SHIPPING :
| Machine small package | Machine user manual in English |
1. Plywood box pack;Bottom bracket; 2. Packing Dimension:900*800*1150mm 3. Gross weight: 100KG 4. Convenient delivery by air or express. | 1. With machine details introduce; 2. Show the use way of every parts; 3. Show how to use the machine step by step; 4. Show how to use the rotary step by step. |
SERVICES :
Installation Service
Installation Services are available with all machines. We dispatch technician to customer's factory for installation and preoperation of machines.
.
Quality Guarantee
3 years' warranty for the whole machine
3 years' warranty for the fiber laser source
After-Sales Service
After the warranty period expired,the buyer only need to pay the actual maintenance cost.
MAN Laser will pay a return visit all customers for several times one year,and will provide technical support service anytime,and
also provide spare parts anytime the buyer want.
After sales service response time: quick response within 8 working hours,after receive the repair call, our after sales engineer will reply as soon as
possible.
